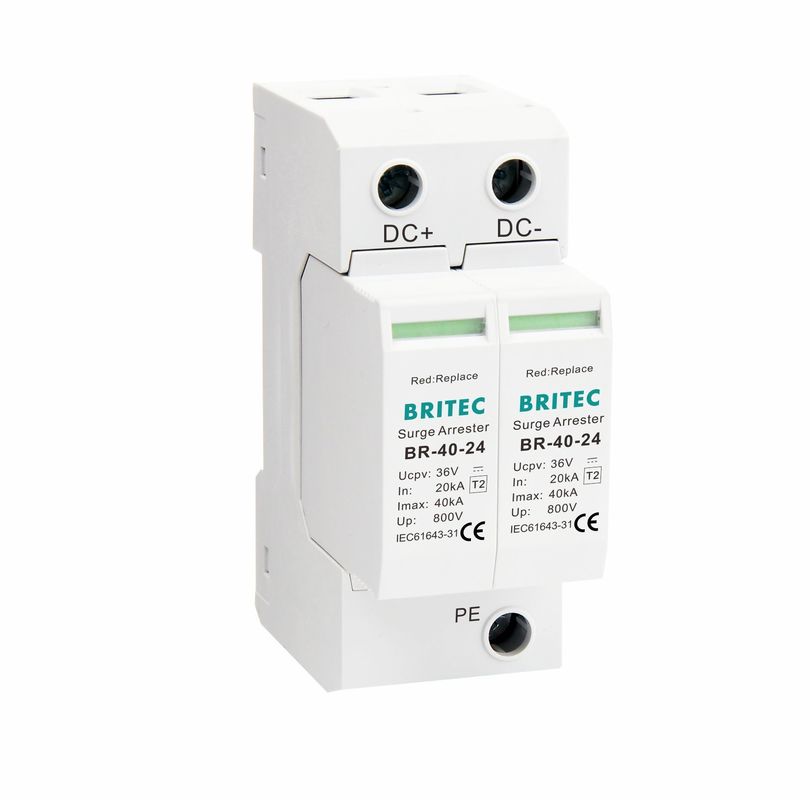

| 2 Mod |
BR-40-24 |
| SPD classification according to IEC61643-31 |
Class II |
| Operating Voltage Un |
DC 24V |
| Max. Continuous Operating Voltage Uc |
DC 36V |
| Nominal discharge current (8/20us) In |
20kA |
| Max. discharge current (8/20us) Imax |
40kA |
| Voltage protection level Up |
＜800V |
| Response time tA |
≤25ns |
| Operating temperature range Tu |
-40℃-80℃ |
| Operating state / fault indication |
green / red |
| Technology |
MOV |
| Format |
Plug-in modular |
| Protection Mode |
+/PE,-/PE |
| Cross-section area (Min.) |
4mm2 |
| Cross-section area (Max.) |
35mm2 |
| For mounting on |
35mm Din rail |
| Enclosure material |
Thermoplastic UL94-V0 |
| Degree of protection |
IP20 |
| Standards compliance |
IEC 61643-31 / EN 61643-31 / UL1449 ed.4/GB 18802.1 |
Other type for choose:
1,Maximum discharge current:40kA,50kA,
2,Number of poles:2P,3P,
3,Maximum continuous operating dc voltage:24V,48V,110V,150V,220V, 600V,1000V,1500V ,
4,Lightning impulse current(10/350us):12.5kA,5kA
24v 40ka DC Surge Arrester Type II Power Lightning Arrester Installation Notes:
BRITEC has designed a wide range of surge protectors for all the
DC power networks.
These surge protectors are available in a wide range of versions
to be adaptable to all configurations :
• Type 1 or Type 2 Surge protectors
• DC voltage from 12 to 1500 Vdc
• Pluggable versions
• Installation must be performed only by electrically skilled operator.
• Disconnect power before installing, no hot-line operation is allowed, and better to under the guidance of professional electrician.
• For best performance, mount protector in parallel with the equipment it is protecting as close as possible. (*Note: If protector is to be located outdoors and exposed to elements, mount protector inside a suitable weatherproof enclosure.)
• Green tab, normal work status, Red tab, failure status, need to be replaced rapidly.
DC 24v Surge Protector 2P 40KA Lightning Arrester Advantage:
• Module designed.
• No follow currents.
• High MOV resistance.
• Color is customizable.
• Logo is customizable.
• 35mm din rail mounted.
• High discharge capacity.
• Package is customizable.
• Mechanical Status Indicator.
• Easy changing of the surge protection module.
